Door element
Doors and fittings
A door is a movable barrier used to cover an opening. A door can be opened to give access and closed more or less securely using a combination of hinges and locks. Lockable stop doors L/R ( left or right stop) with a 34 mm thick light weight door panel are available as light construction swing door (Axis 750 mm) or frame door (Axis 1000 mm). Both are available with door set stop, hinges and knob lock.
Light construction Door

175100 Door
13,5 kg

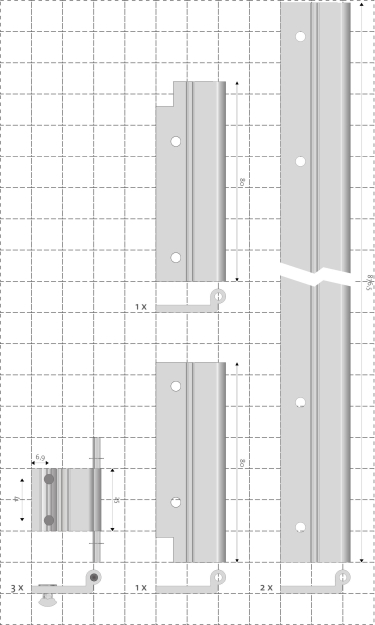

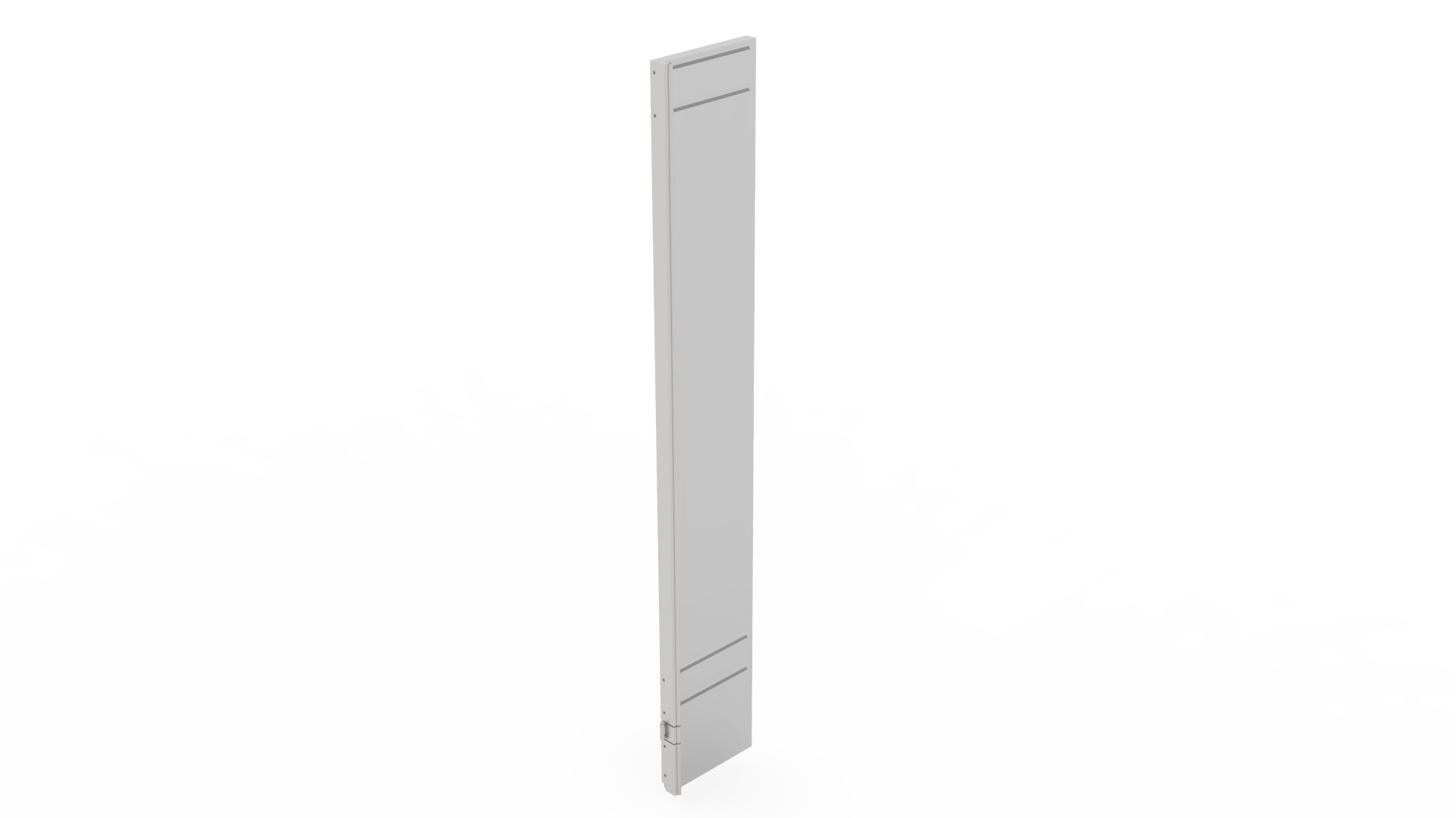

175710 Hinge
634 g

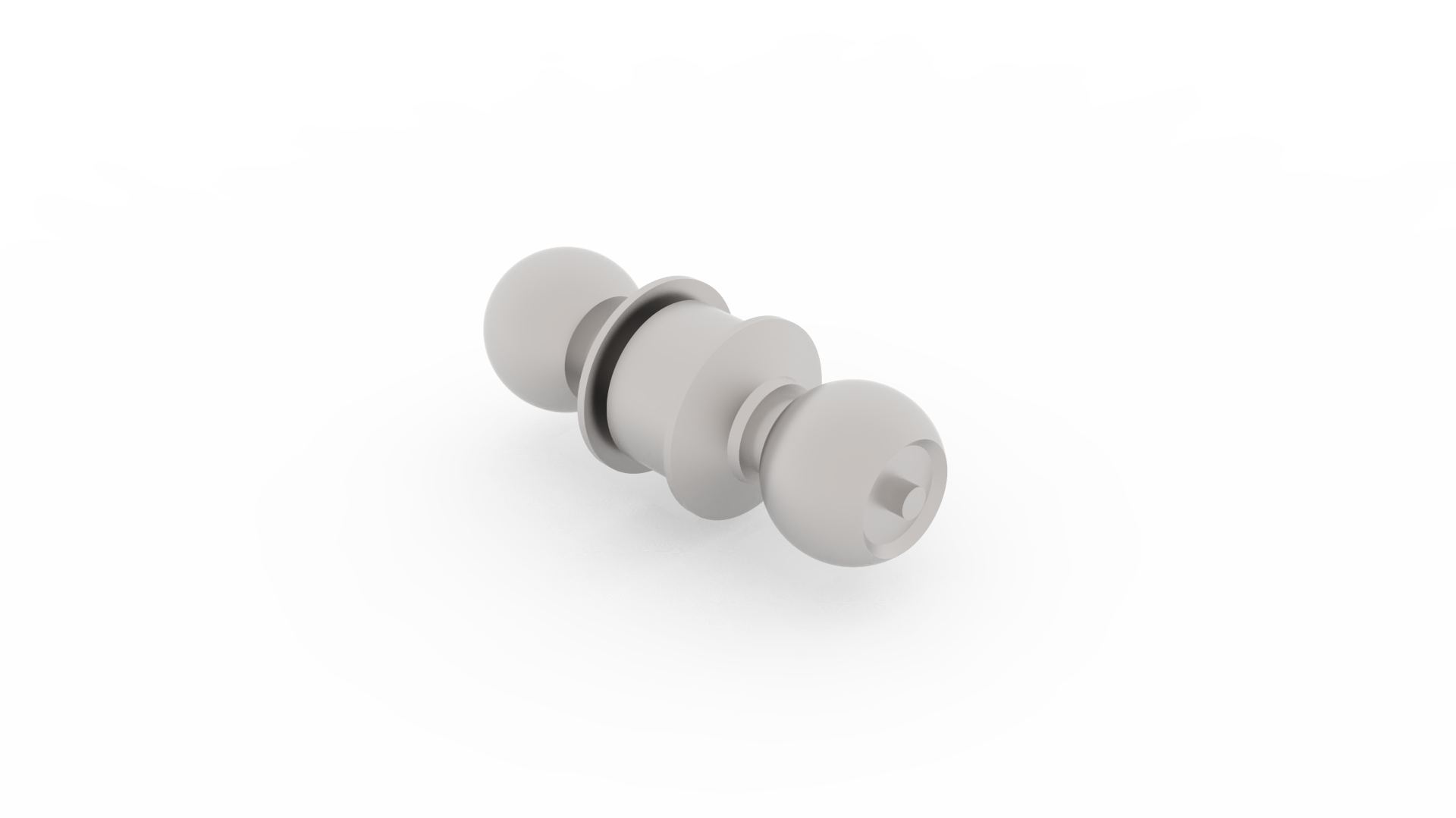

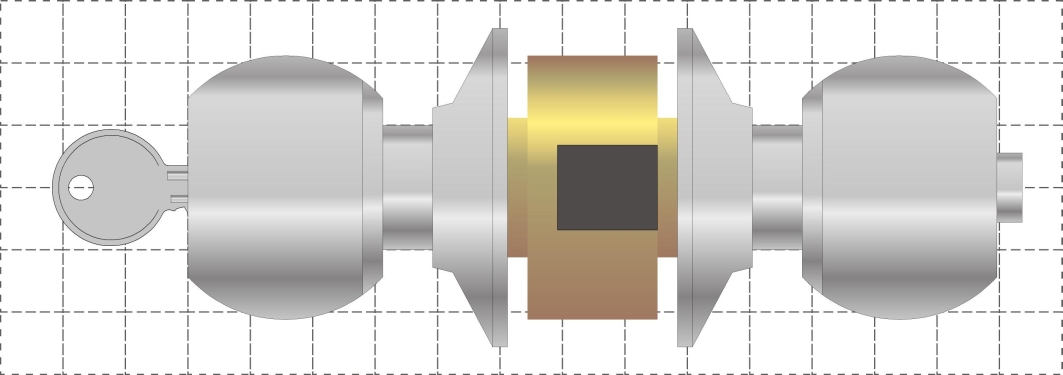

175700 Knob lock
442 g

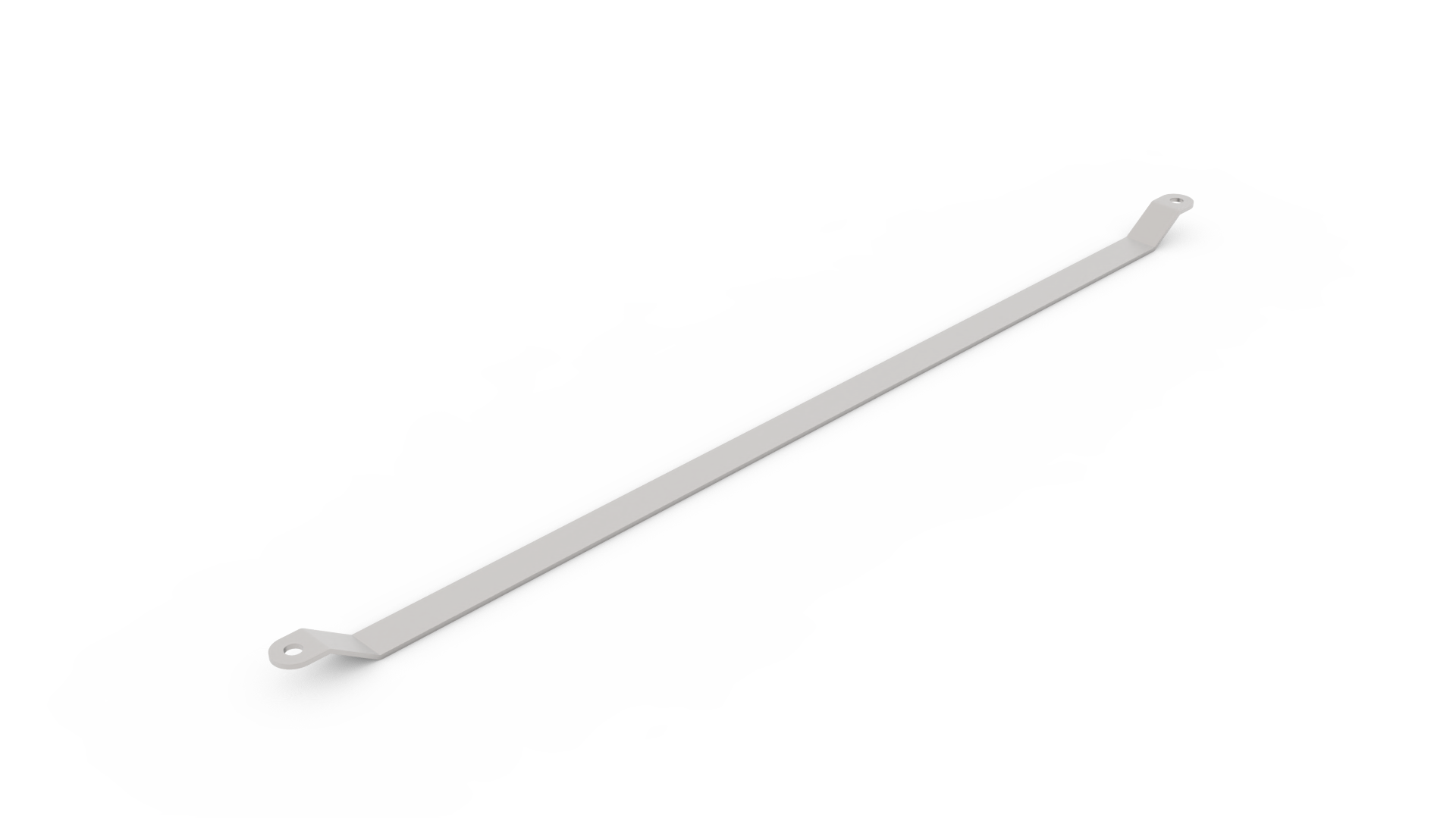

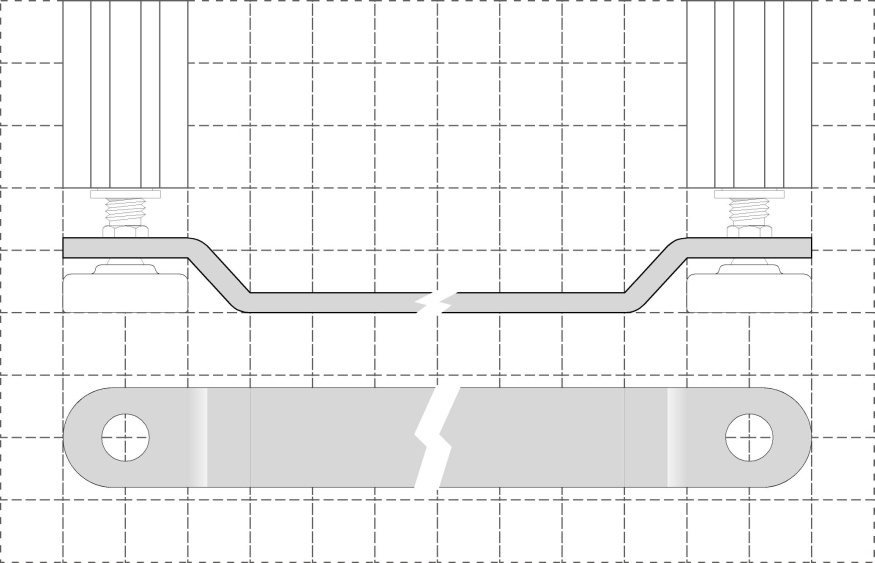

175729 Fixture
Door sill, fixing of width
228 g

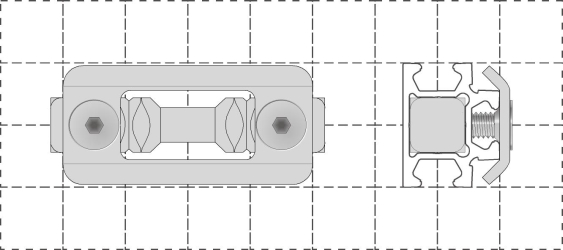

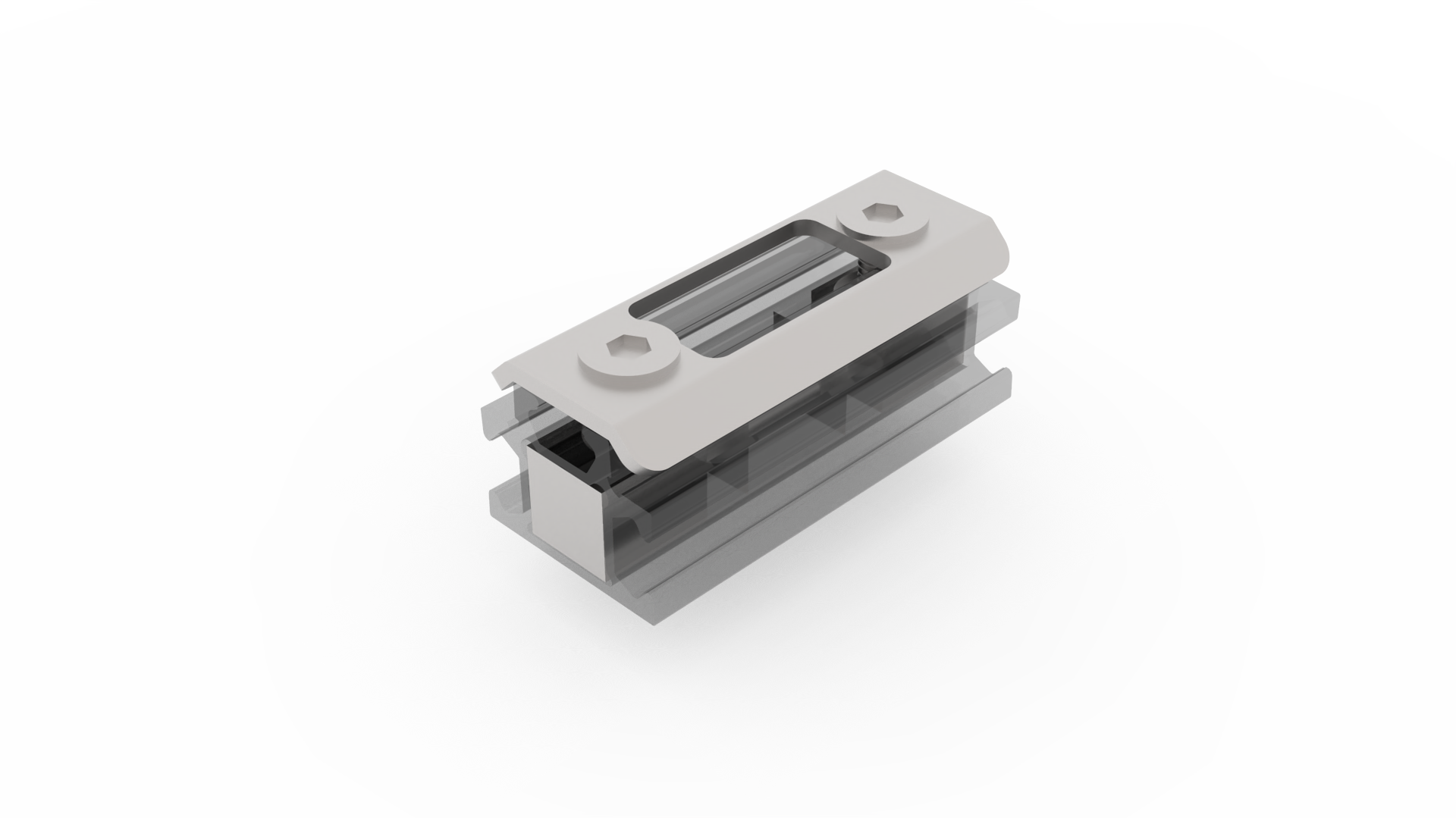

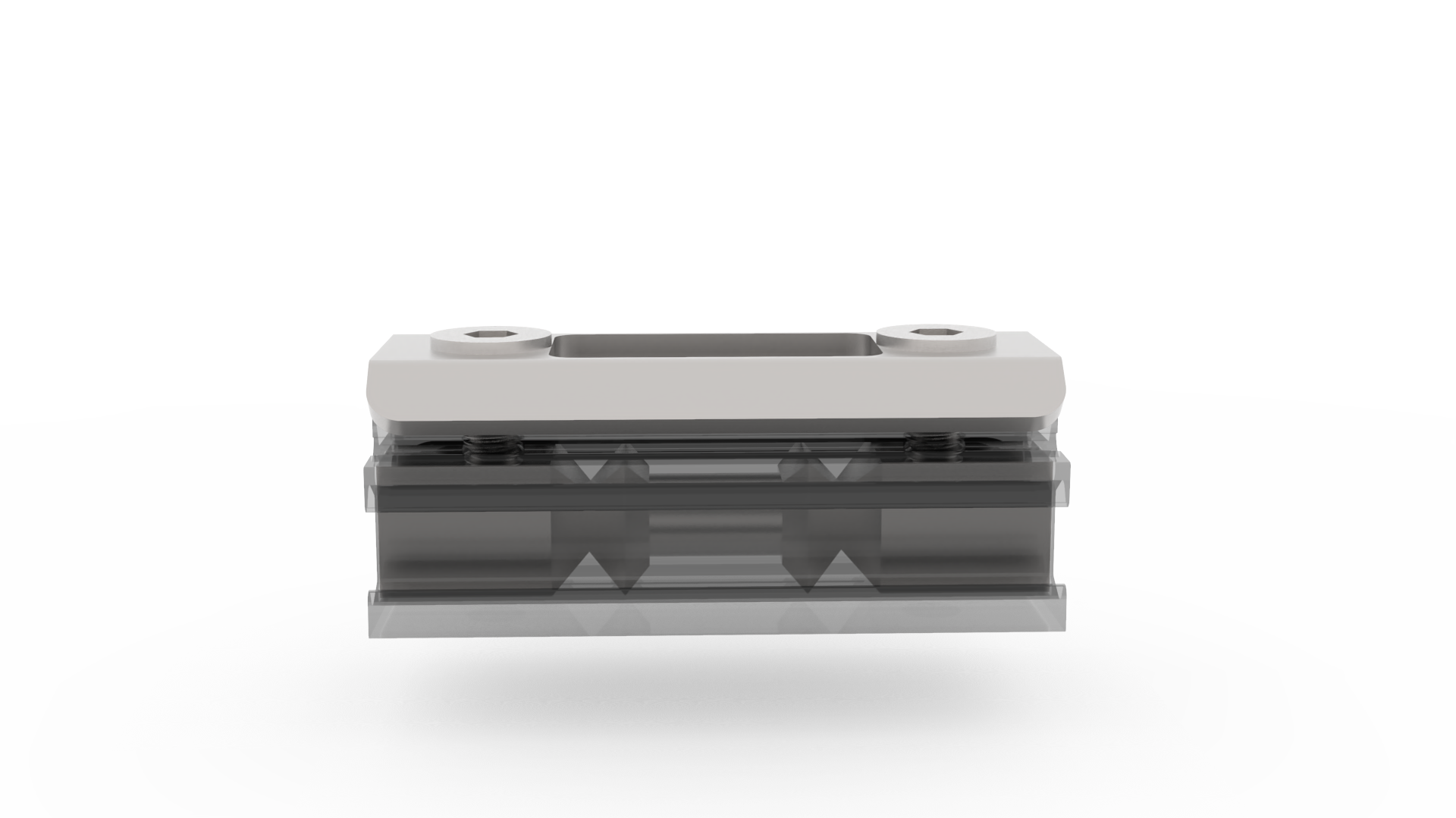

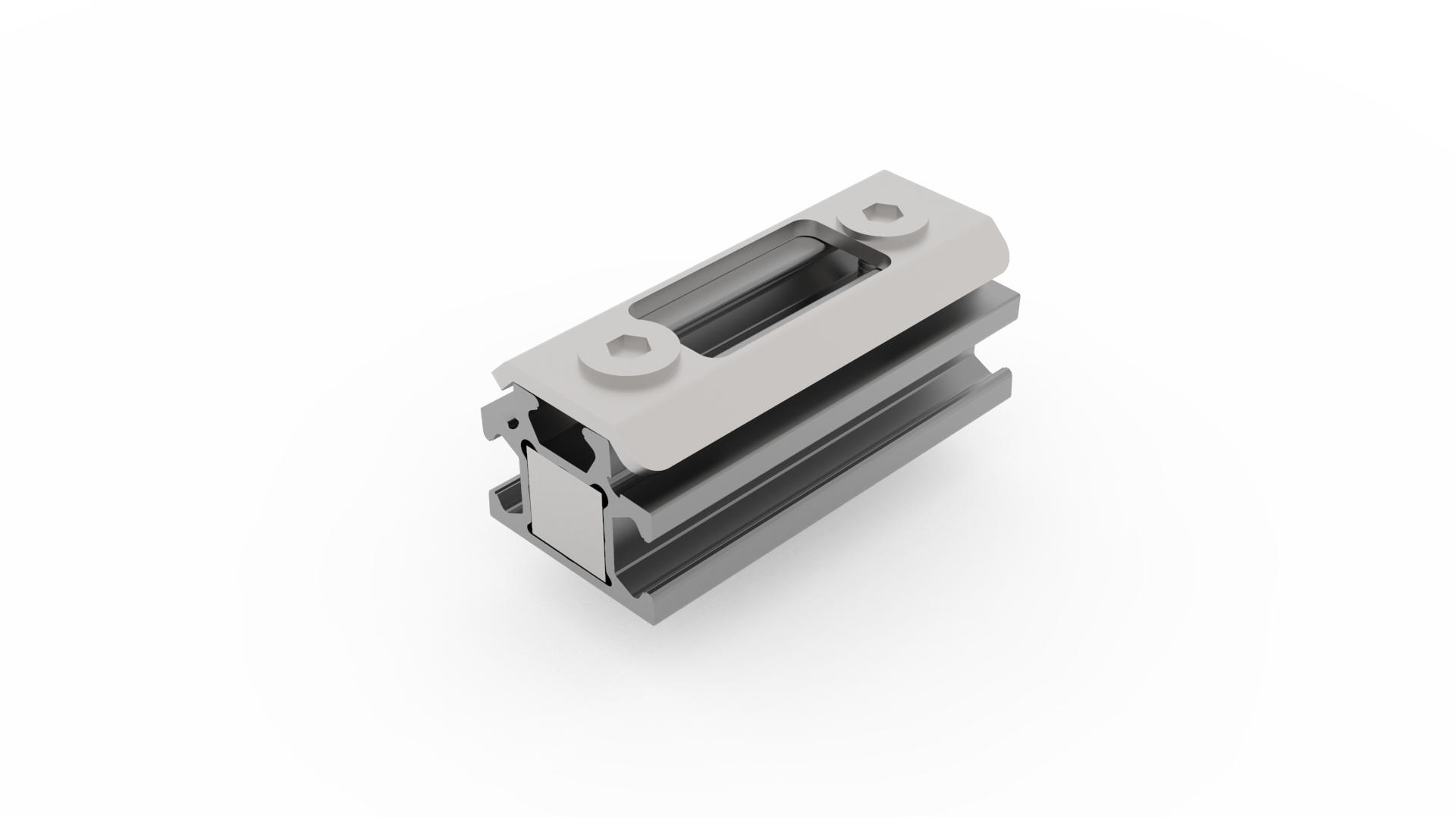

175705 Strike plate
Treatment profile: DP
53 g

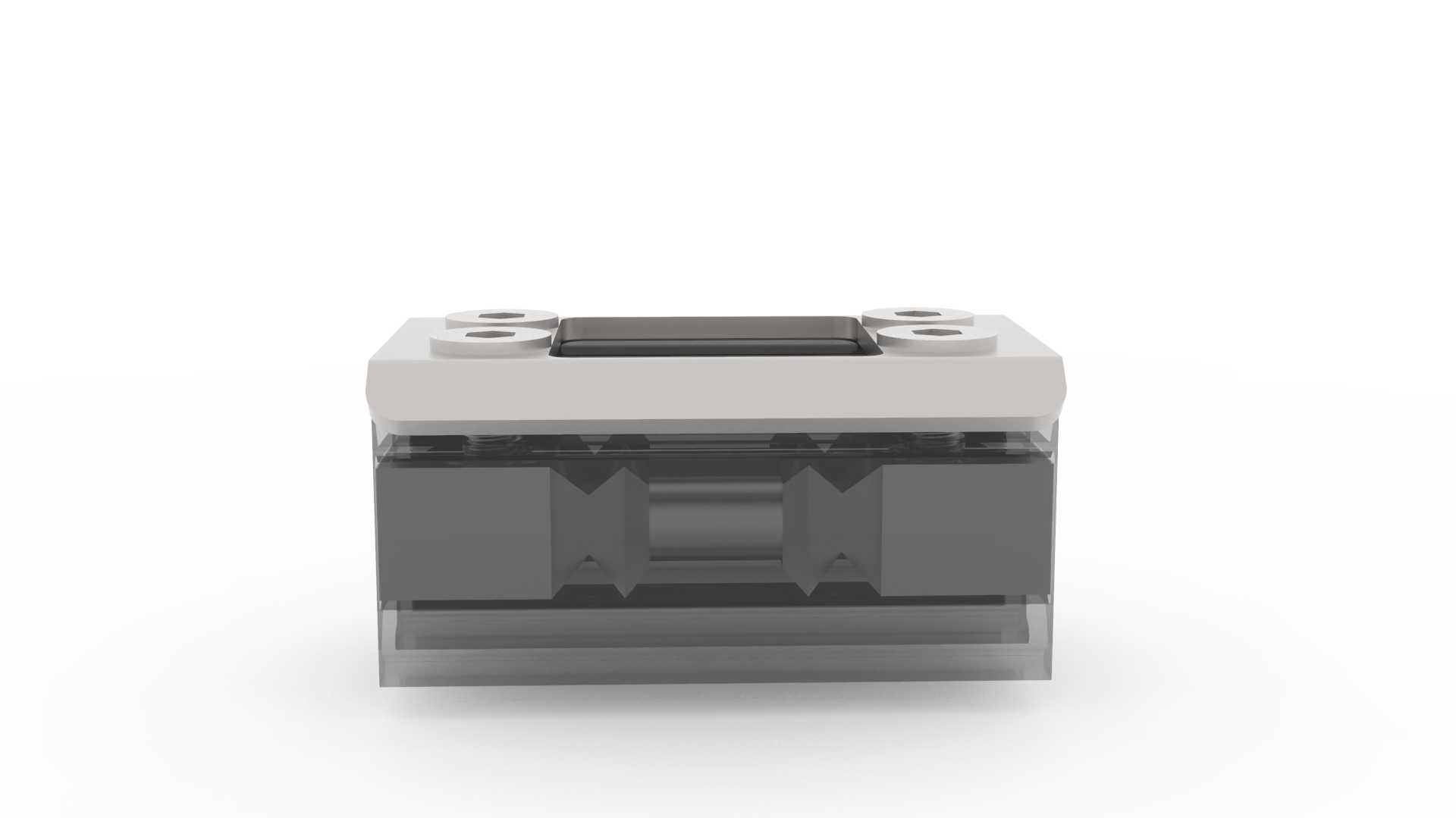

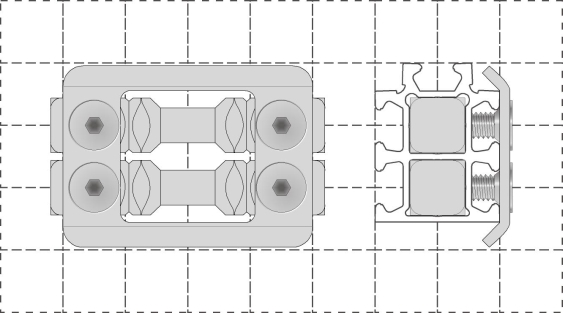

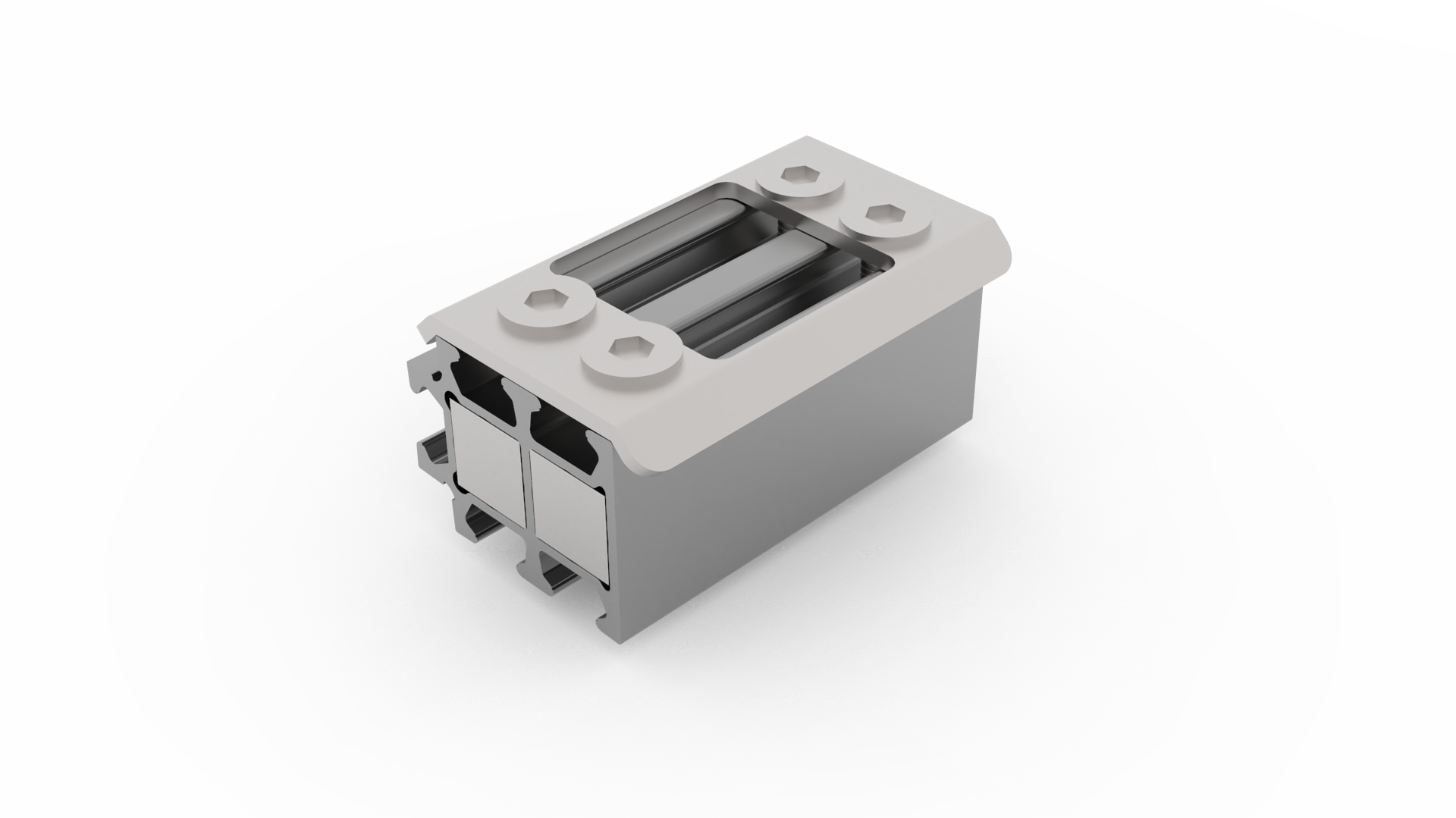

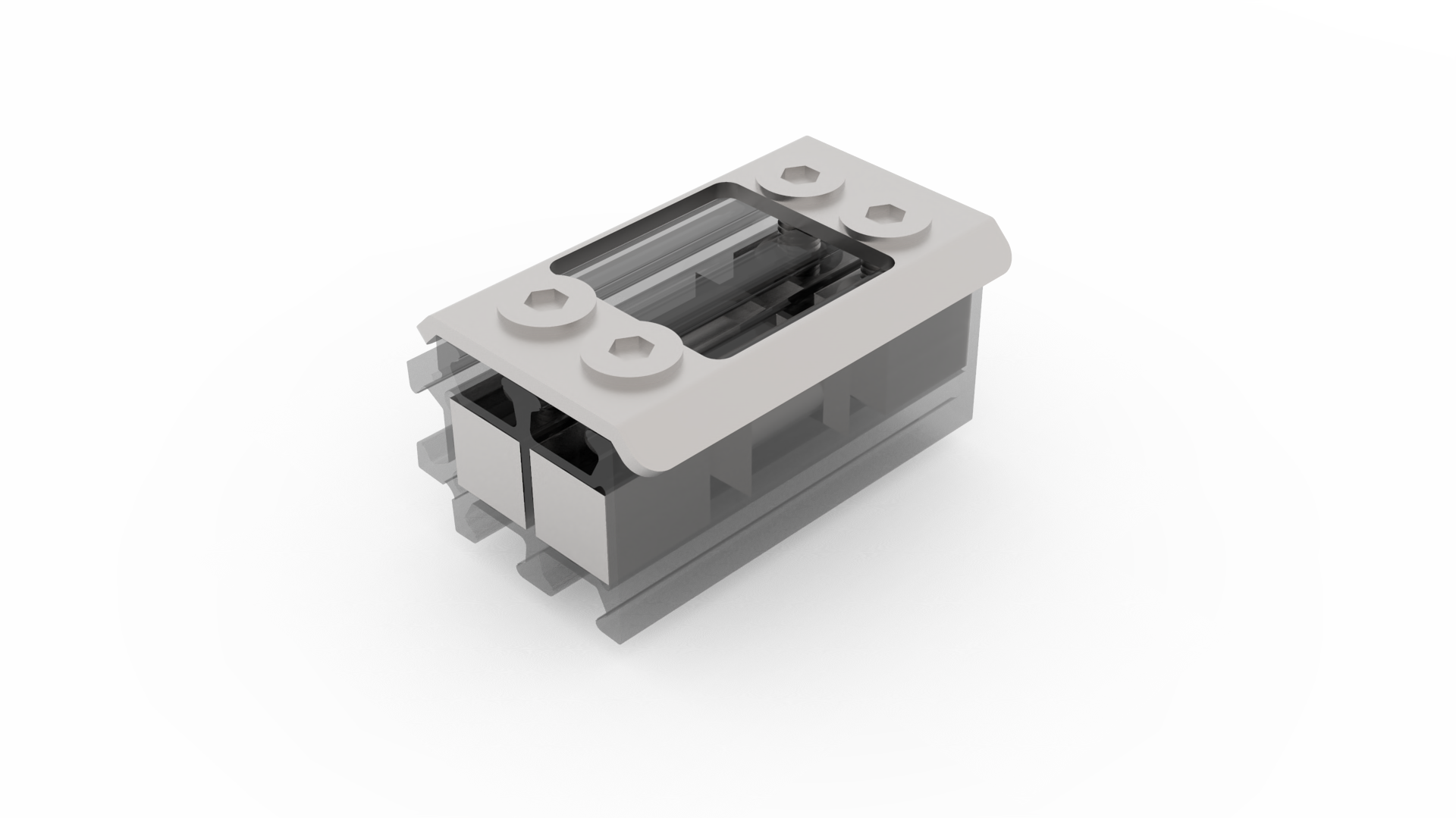

175706 Strike plate
Treatment profile: DP
97 g
Profile Door

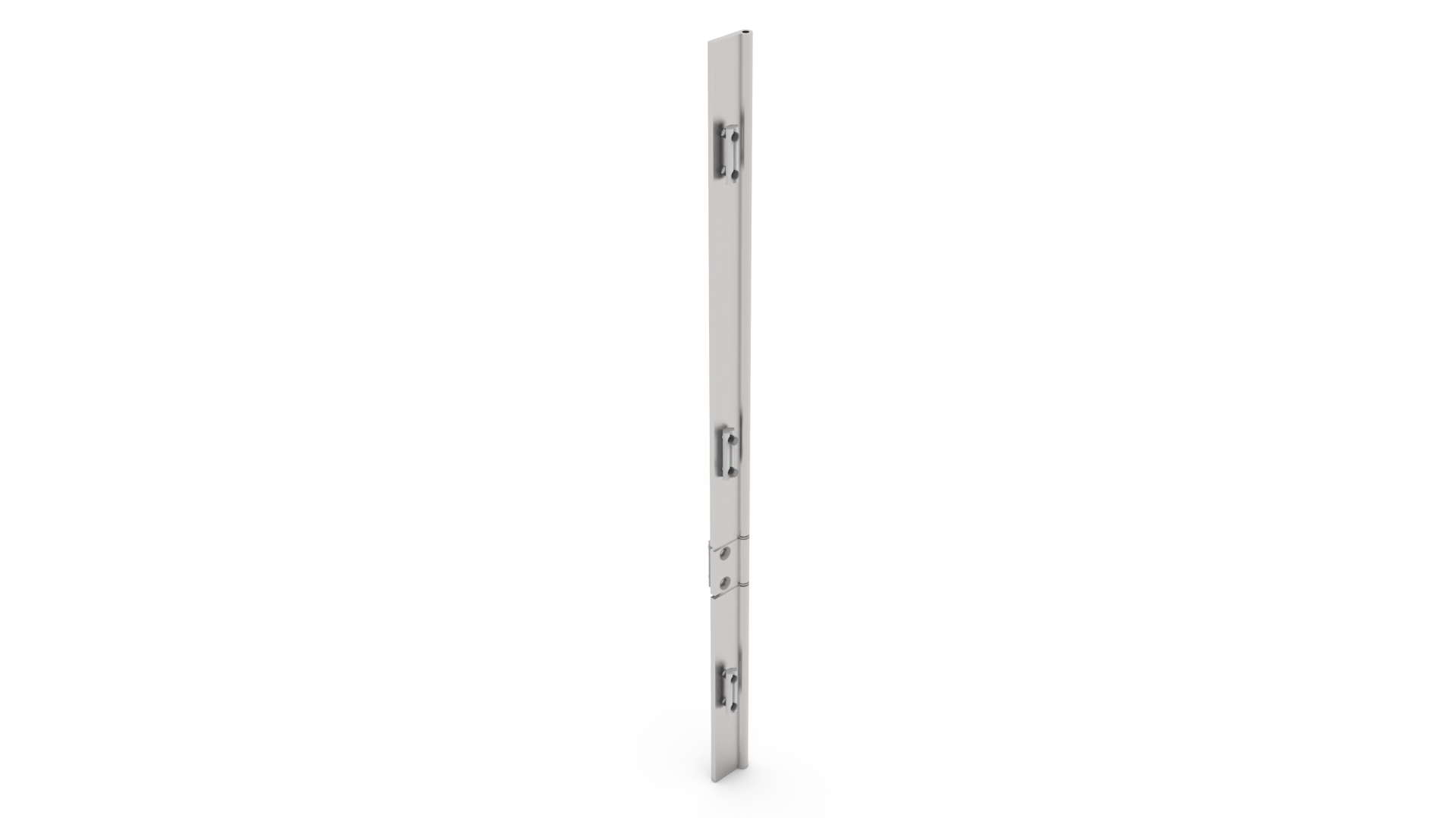

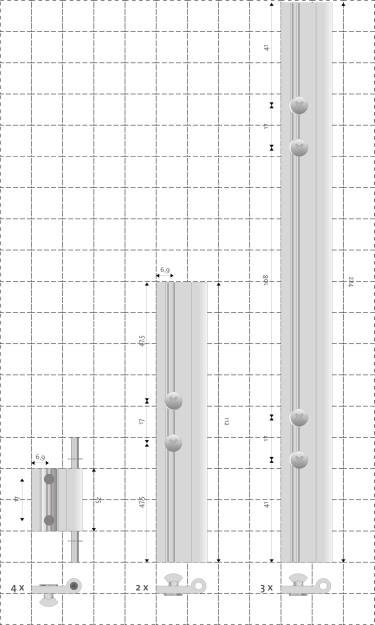

175720 Hinge
For doors made of profiles
1000 mm total
Grid 500, 750, 1000 mm
235 g
